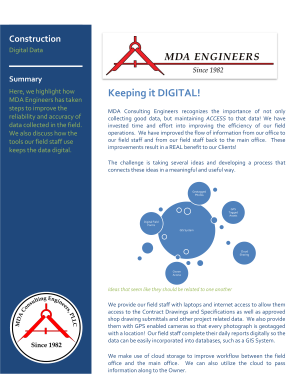

Digital Data

MDA Highlights

GIS Mapping

MDA Highlights

Fresh Water Friends

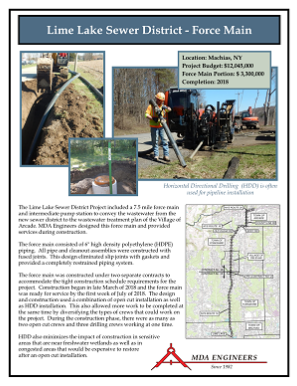

Lime Lake Sewer District - Force Main

Location: Machias, NY
Project Budget: $12,045,000 (Force Main Portion: $3,300,000)
Completion Year: 2018



The Lime Lake Sewer District force main includes 7.5 miles of pipe and an intermediate pump station to convey wastewater from the
new sewer district to the wastewater treatment plant of the Village of Arcade. MDA Engineers designed this force main and provided
services during construction. The force main uses HDPE piping with fused joints, eliminating gasketed slip joints and providing a completely restrained piping system. The force main was constructed with a tight schedule in under four months.

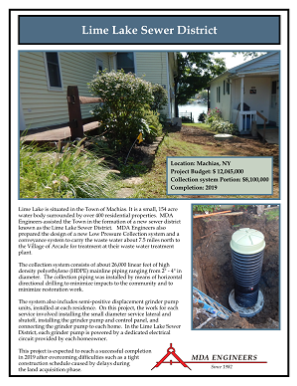

Town of Machias - Lime Lake Sewer District

Location: Machias, NY

Project Budget: $12,045,000 (Collection System Portion: $8,100,000)
Completion Year: 2019



MDA Engineers assisted in the formation of a new sewer district to serve this community of over 400 lakefront residences. MDA Engineers also designed the new low pressure collection system consisting of nearly 5 miles of piping installed by means of horizontal directional drilling to minimize impacts to the community and minimize restoration work. Each home is connected to the system by a semi-positive-displacement grinder pump. The wastewater is pumped 7.5 miles away for treatment.

Residential House Drawings

Location: Ellicottville, NY
Living Space: 5,240 SF; Garage Space: 726 SF
Completion Year: 2019



MDA Consulting Engineers is fully capable of developing custom house drawings for modest homes as well as larger, more elaborate designs. We typically assist clients through the development of the drawings, perform a full structural design, and assist in
planning board submissions as necessary for the approval of the
plans. We can also include site plans as may be required by the
municipality. Finally, we are able to provide support during
construction to answer questions from the contractor and to monitor the progress of construction.

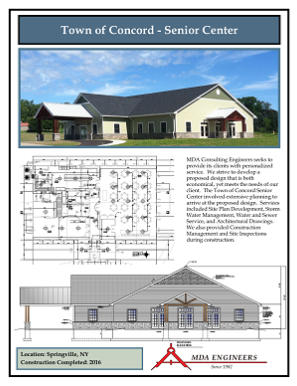

Town of Concord - Senior Center

Location: Springville, NY

Completion Year: 2016



MDA Consulting Engineers seeks to provide its clients with personalized service. We strive to develop a proposed design that is both economical, yet meets the needs of our client. The Town of Concord Senior Center involved extensive planning to arrive at the proposed design. Services included site plan development, storm
water management, water and sewer service, and architectural drawings. We also provided construction management and site inspections during construction.

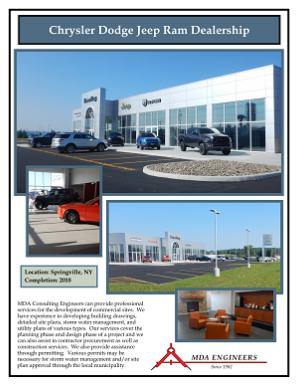

Chrysler Dodge Jeep Ram Dealership

Location: Springville, NY

Completion Year: 2018



MDA Consulting Engineers can provide professional services for the development of commercial sites. We have experience in developing building drawings, detailed site plans, storm water management, and utility plans of various types. Our services cover the planning phase and design phase of a project and we can also assist in contractor procurement as well as construction services. We also provide assistance through permitting. Various permits may be necessary for storm water management and/or site plan approval through the local municipality.

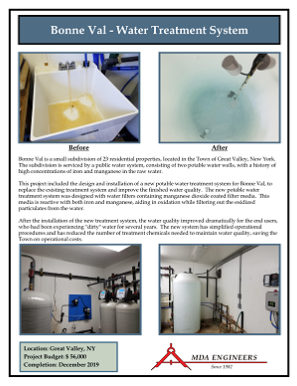

Bonne Val - Water Treatment System

Location: Great Valley, NY

Budget: $56,000

Completion Year: 2019



The subdivision of Bonne Val is serviced by a public water system with a history of high iron and manganese in the raw water. This project included the design and installation of a new water treatment system using manganese dioxide coated filter media which targets both iron and manganese. The new treatment system provides dramatically improved water quality for end users, as well as reduced operational costs for the Town.

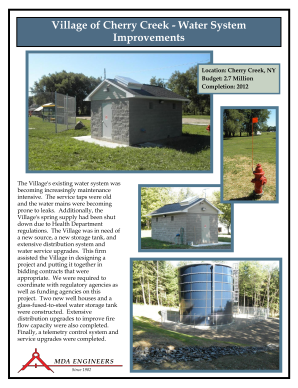

Village of Cherry Water System Improvements

Location: Cherry Creek, NY

Budget: $2,700,000

Completion Year: 2012



The Village was in need of a new source, a new storage tank, and extensive distribution system and water service upgrades. This firm assisted the Village in designing a project and putting it together in bidding contracts that were appropriate. We were required to coordinate with regulatory agencies as well as funding agencies on this project. Two new well houses and a glass-fused-to-steel water storage tank were constructed. Extensive distribution upgrades to improve fire flow capacity were also completed. Finally, a telemetry control system and service upgrades were completed.

Town of Randolph Culvert Replacement

Location: Randolph, NY

Budget: $215,000

Completion Year: 2017



The Town was faced with a challenging culvert replacement following damage during a spring runoff storm event. The culvert replacement was funded through State and Federal disaster assistance. We worked alongside the Town and funding and regulatory agencies from design and permitting through to successful completion of construction. A precast concrete box culvert provided speed of installation and maximized hydraulic capacity. The completed project will provide a safe, reliable, and environmentally conscious crossing for many years to come.

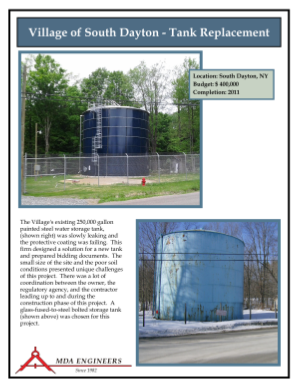

Village of South Dayton Tank Replacement

Location: South Dayton, NY

Budget: $400,000

Completion Year: 2011



The Village's existing 250,000 gallon painted steel water storage tank, (shown right) was slowly leaking and the protective coating was failing. This firm designed a solution for a new tank and prepared bidding documents. The small size of the site and the poor soil conditions presented unique challenges of this project. There was a lot of coordination between the owner, the regulatory agency, and the contractor leading up to and during the construction phase of this project. A glass-fused-to-steel bolted storage tank was chosen for this project.

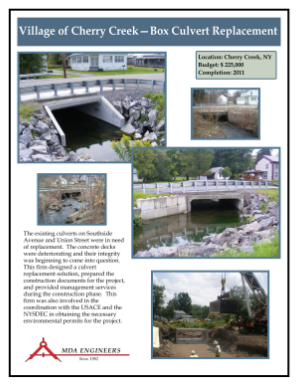

Village of Cherry Creek Box Culvert Replacement

Location: Cherry Creek, NY

Budget: $225,000

Completion Year: 2011



The existing culverts on Southside Avenue and Union Street were in need of replacement. The concrete decks were deteriorating and their integrity was beginning to come into question. This firm designed a culvert replacement solution, prepared the construction documents for the project, and provided management services during the construction phase. This firm was also involved in the coordination with the USACE and the NYSDEC in obtaining the necessary environmental permits for the project.
